Water Distiller

Model:
TC-204SG

Semi Automatic

New Water Distiller Model TC-204SG The latest design with fully stainless steel counter top distiller includes the distilled water outlet faucet is also made of stainless steel. Water Distiller model TC-204SG comes with glass container and build with removable stainless steel plate cover.

Model:
TC-204

Semi Automatic

New Portable water distiller model TC-204 Water Distiller model TC-204 comes with white body and equip with stainless steel boiling chamber and underlid. Glass container with removalbe top lid.

Model:
TC-203SG

Semi Automatic

Portable TC-203SG distiller
Distillation is the only process that collects the pure steam! The steam rises from the water, leaving virtually all other contaminants behind, and then we cool the steam down into pure water! Model: TC-203SG is complete build with inner boiling chamber and the outer jacket both made of stainless steel with Glass collection bottle. Manual fill & automatic shut off.
Water Distiller Model TC-203SG details...

Model:
WS-303
wisdom

Semi Automatic

Water Distiller WS-303
Distillation is the single-most effective water treatment method! Our best water distiller will remove 99.9% of contaminants. Model WS-303 with its removable tap water container make water refilling easy. With 4 lits a cycle and 16 lits a day will definitely make enough fresh drinking and cooking water for a family of 6 people. With this compact distilling system you are rest assure of pure water glass after glass, day after day, year after year!
Water Distiller Model WS-303 details...

Model:
TC-6

Semi Automatic

Water Distiller TC-6
Distillation is the only process that boils the water, which means that distillation kills bacteria, viruses and other biological contaminants!! Also during boiling process, inorganic chemical is evaporated while it is at low boiling temperature. This Model TC-6 is a 6 lits per cycle and may be possible of making 12 to 24 lits a day. It is also the only compact system that can desalinate sea water and use to home produce alcohol.
Water Distiller TC-6 details...

Model:
TC-202SG

Semi Automatic

Water Distiller Model TC-202s with Glass container Distillation is the only process that collects the pure steam! The steam rises from the water, leaving virtually all other contaminants behind, and then we cool the steam down into pure water! Model: TC-202SG is complete build with inner boiling chamber and the outer jacket both made of stainless steel. Manual fill & automatic shut off.
Water Distiller TC-202SG details...

Model:
TC-202S

Semi Automatic

Internal view of Portable Distiller
This is water distiller model TC-202S that comes with a poly-carbonate container.
Model: TC-202S is complete build with inner boiling chamber and the outer jacket both made of stainless steel. Manual fill & automatic shut off.
Water Distiller TC-202S details...

Model:
TC-500H

Fully Automatic

Water Distiller Model TC-500H New ProductWater Distiller TC-500H Specification and details...

Model:
TC-501H

Fully Automatic

Water Distiller Model TC-501H New ProductWater Distiller TC-501H Specification and details...

Model:
TC-500

Fully Automatic

Dispenser type water distiller
With our WISDOM water distiller system, your need for clean drinking water for consumer needs is well satisfied. You wouldn't think of making soup or coffee with tap water of filtered water which is not completely clean. You should be careful on what ever goes into your body as it has direct affect your health. That means you should feel comfortable using our quality water distiller. When you own our water distiller, your investment continues to pay for itself year after year.
Model TC-500 produces 18 lits a day and has its own storing tank. This is fully automatic water distiller with auto filling and auto shut off.
Water Distiller TC-500 details...

Model:
TC-501

Fully Automatic

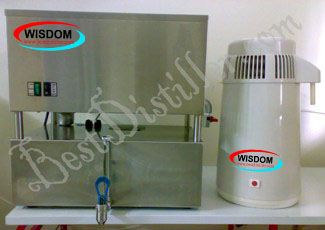

Fully Stainless Steel Water Distiller
Distillation produces extremely consistent results! There is no drop in quality over time. It produces consistently high quality water glass after glass, day after day, and year after year. Model: TC-501 is a fully automatic distillation system build with 24 lits water storing steel tank and with the maximum of making 26 lit per day. Automatic fill & Automatic shut off.
Water Distiller TC-501 details...

Model:
TC-502

Fully Automatic

Water Distiller TC-502 with boiling tank
Distillation is extremely reliable!! Since there are no physical barriers to break down or fail, a good distiller is very reliable and has a very long life span!
This Model: TC-502 with 32 lits storing tank and all the TC model display here will definite be call a reliable water distillation system. It makes tap water free from all impurities. Automatic fill & Automatic shut off.
Water Distiller TC-502 Specification...

Model:
TC-503

Fully Automatic

Fully automatic water distiller TC-503 with drain valve
For distillation process, the quality of best distilled water is not related to the quality of the source water! It will produce consistent quality regardless of the quality of the source water. Model: TC503 is a larger system and with a 40 lits storing tank practically suitable for small and large family. It is Automatic fill water and Automatic shut off when storing tank is full.
Water Distiller TC-503 specification and features....

Model:
THC-600

Fully Automatic

Hot and Cold water distiller
Distillation offers absolute peace of mind! Consistently produces the highest quality drinking water available, something that no other process can honestly claim
This Model: THC600 is a double storing tank with hot distilled chamber and another storing chamber for distilled water at ambient temperature. Storing tank size is 24 lits and another is 4 lits.
It is a luxury distiller for the upper class buyer who want a more complete water quality distillation system. Automatic fill and Automatic shut off.
Water Distiller model THC-600 details...

Model:
THC-601

Fully Automatic

Dispenser Water Distiller
Distillation is recommended by doctors & nutritionists Endorsed by top doctors and nutritionists in books such as Fit for Life, Fit for Life 2, Optimum Sports Nutrition, Nutrition for Endurance, Prescription for Nutritional Healing and many, many more. Model: THC601 is the bigger brother of THC600 where a larger storing capacity for the luxury class consumer. It have a hot water storing tank of 6 lits and another 28 lits storing tank for distilled water at room temperature . It Automatic fill & Automatic shut off when storing tank is full.
Water Distiller THC-601 details...

Model:
THC-602

Fully Automatic

Hot and Cold fully automatic water distiller
Distillation exactly duplicates Mother Nature’s hydrologic cycle, nature’s primary method of purifying water. This super extra large model is specially designed with a pre-heating system for energy saving. It is probably the only unit in its class that is designed in this way. Model: THC 602 is the biggest dual purpose distillation with storing tank for hot is 6 lits and another at ambient temperature of 40 lits. Also with self sterilizing features that uses steam to sterilize the carbon filter. A distiller of its own class: Automatic filling and Automatic shut off.
Water Distiller THC-602 details...

Model:
TC-506

Fully Automatic

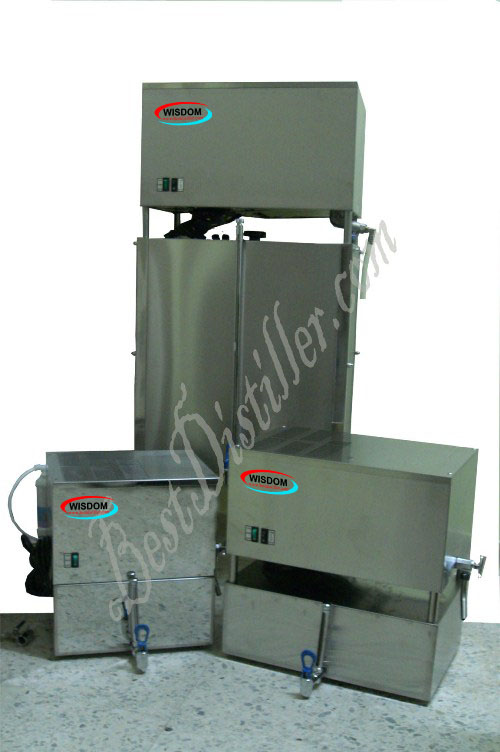

100 lit distillation system
Model: TC-506 is a larger storing capacity of water distiller for the luxury class consumer and even industrial with the capacity of 80 lit per day. The needs for larger distiller usually involve university, pharmaceutical industry, electronic industry, and autoclave.
TC-506 water distiller is an industrial water distiller for higher demand of best distilled water. TC-506 capable to produce 80 lits distilled water a day. This unit operates quietly with latest designed silent fan.

TC-506 distillation system details...

Model:
TC-507

Fully Automatic

Fully automatic high capacity distilled water system model TC-507

Latest air cool technology water distiller with capacity 130 lits/day is a custom made water distillation system. This is a fully automatic air cool model uses an electronic circuit board to control the flow from water inlet , boiling process, and control of water level in distilled water storing tank.
Equip with a 100 lits high grade stainless storing tank and distilled water level sensor to control water level inside distilled water tank.

Water Distiller for hospital and industrial model TC-507 specification and details...

large capacity distilled water system

Large Capacity Distilled Water System for diapers, glove, food, pharmaceutical manufacturing industry.
Our distillation system can produce 100 lits/hr, 300 lits/hr, 500lits/hr distilled water.

Large capacity distilled water system details...

Model:
WDZ-5

Using Water Cool Technology

Water Distiller WDZ-5

By using water cool technology, Model WDZ-5 is able to produce 5 lits of best distilled water in one hour.
This model can be used for making battery water and distiled water for small factory. This WDZ-5 operate voltage 220V and it can run 8~10 hours a day.

Model WDZ-5 water cool distiller details...

Model:
WDZ-20

Using Water Cool Technology

Water Still 20 lits/hr model WDZ-20
Model WDZ-20 best water distiller is a water cool distillation system with capacity 20 lits. This distiller is suitable for high distilled water consumer. It can produce 20 lits distilled water in one hour. This model can be used for continuously 10 hours a day.
WISDOM distillation system can be used for any industrial or laboratory application that calls for high purity water. Our distillation system providing broad-spectrum removal of contaminants in water. This distilled water can be used as sterile water to wash medical tools usign autoclave and many other usage purpose.
Specification and details of WDZ-20 water distiller...

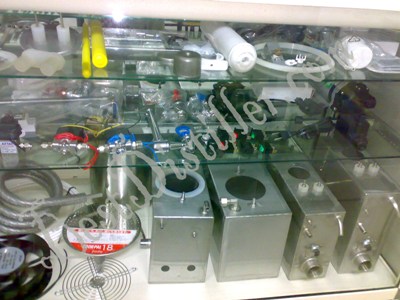

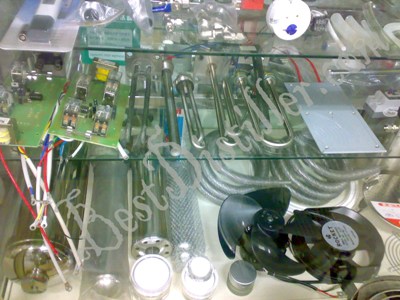

Pre-filter and Parts for Water Distiller

demineralizer Our Demineralizer is the pre-filter for fully automatic models.
This is the latest technology of pre-filter which can break down particle found in hard water and is more durable. The shelf life for this pre-filter is 7 years.
By using this Demineralizer, the heater inside boiling chamber of water distiller will be protected.
water still faucet This type of faucet is specially design to fit the distiller with demand pump.
By installing this faucet with demand pump and extend to your room, your will discover it is very convenient especially those who are staying in second or third floor.
demand pump of water distiller Demand pump is an optional gadget for fully automatic water distiller model. After installing this demand pump, you are able to get your pure distilled water at the place you desire.
Final Faucet for extended faucet Distilled water faucet.
Faucet with demand pump for extended distilled water connection Distilled water faucet.
Luxury final faucet of extended demand pump Distilled water faucet.
water distiller heating element Heater is the heart of a water distiller. It is used to heat and boil raw water until its boiling point and steam is created.
This type of heater is used for fully automatic water distiller and the heater specification are 700W, 1000W, and 1200W.
water sitll TC-503 48 lits per day All fully automatic water distiller model have a build in residue drain valve. This drain valve are used to discharge the residue in boiling chamber. The more frequent you discharge the residue, the longer your machine will be last!
boiling chamber Cooling coil for fully automatic model are placed above the fan. Quality of this cooling fan will determine distilled water output.
water distiller boiling tank This is Boiling Chamber for fully automatic model. Raw water are boiled in this chamber and the steam created will flow out to the cooling coil.
control valve Water control valve are used in our fully automatic water distiller model. It control the flow of raw water into boiling chamber automatically.
ws303 water distiller WS-303 Heater is a small but durable heater. Its power rating is 600W.
portable water distiller WS-303 Motor is the main drive energy for cooling fan.

TC-6 Cooling Coil

water distiller TC-6
TC-6 cooling coil is a stainless steel cooling coil. It is the best grade of cooling coil and very durable.
new productNew water with glass container model TC-204SG



Model: TC-204SG

Distillation is the only process that collects the pure steam! The steam rises from the water, leaving virtually all other contaminants behind, and then we cool the steam down into pure water! Model: TC-204SG is complete build with inner boiling chamber and the outer jacket both made of stainless steel. Manual fill & automatic shut off

Specification:

~ Diameter : 20 cm Height : 36 cm
~ Weight: 3.5 kg
~ Net Weight: 5.0kg
~ Gross Weight: 6.5 kg
~ Packing Dimension: 38.0cm (L) x 24.0cm (W) x 40.0cm (H)
~ Boiling chamber capacity: 4 lits
~ Glass Container capacity: 4 lits
~ Distillate capacity approximate. 4 lits per 4 hours
~ Power: 750 W
~ Voltage: AC110/120V, 50/60Hz ; AC220/240V, 50/60Hz
~ Detachable Ground Power Cord

Back To Top


new productNew water with glass container model TC-204SG



Model: TC-204

Distillation is the only process that collects the pure steam! The steam rises from the water, leaving virtually all other contaminants behind, and then we cool the steam down into pure water! Model: TC-204 is complete build with inner boiling chamber and inner top lid both made of stainless steel. Manual fill & automatic shut off

Specification:

~ Diameter : 20 cm Height : 36 cm
~ Weight: 3.5 kg
~ Net Weight: 5.0kg
~ Gross Weight: 6.5 kg
~ Packing Dimension: 38.0cm (L) x 24.0cm (W) x 40.0cm (H)
~ Boiling chamber capacity: 4 lits
~ Glass Container capacity: 4 lits
~ Distillate capacity approximate. 4 lits per 4 hours
~ Power: 750 W
~ Voltage: AC110/120V, 50/60Hz ; AC220/240V, 50/60Hz
~ Detachable Ground Power Cord

Back To Top


Portable Distiller TC-202s



Model: TC-203SG

Distillation is the only process that collects the pure steam! The steam rises from the water, leaving virtually all other contaminants behind, and then we cool the steam down into pure water! Model: TC-203SG is complete build with inner boiling chamber and the outer jacket both made of stainless steel. Manual fill & automatic shut off

Specification:

~ Diameter : 20 cm Height : 36 cm
~ Weight: 3.5 kg
~ Net Weight: 5.0kg
~ Gross Weight: 6.4 kg
~ Packing Dimension: 28.0cm (L) x 25.0cm (W) x 45.0cm (H)
~ Distillate capacity approximate. 4 lits per 4 hours
~ International 240V AC - 50Hz - 750 W
~ Detachable Ground Power Cord

Stainless Water Distiller 120V/240V - Glass Collection
This distiller features a durable brushed stainless steel outer shell with black top. This is an attractive addition to your kitchen especially if you already have stainless appliances. All WISDOM countertop distillers feature a full stainless steel boiling chamber including the upper dome. This is a convenient, low cost, easy to use 1 gallon water distiller. Makes up to 4 gallons a day. We have been distributing this distiller to doctors, dentists, laboratories, businesses and individuals for over 15 years.

Countertop water distillers offer the convenience of being portable, easy to set up, and less expensive. Most make 1 gallon at a time and shut off automatically when it is finished. You can make subsequent gallons as long as you are there to fill up your water distiller.

Distillation is the only process that collects the pure steam! The steam rises from the water, leaving virtually all other contaminants behind, and then we cool the steam down into pure water! Model: TC-203SG is complete build with inner boiling chamber and the outer jacket both made of stainless steel. Manual fill & automatic shut off.

Features:

  1. Recommend for 4 people.
  2. Advanced Design Euro-style Countertop Appliance
  3. Manual fill, no installation required
  4. Automatic shut-off after each cycle
  5. Gaseous Vent & Post Carbon Treatment System
  6. Fan cooled
  7. Stainless steel boiler - 4 liter capacity
  8. Stainless Steel under lid
  9. Enclosed heating element for long life
  10. Mobile, durable, and a space saver.
  11. Automatic temperature thermostat control.
  12. Automatically switches off when the process is finished, zero damage.
  13. No need of filter or cartridges, no pollution.
Portable Type water distiller

Back To Top


ws-303 water distiller

Model: WS-303

Distillation is the single-most effective water treatment method! Our best water distiller will remove 99.9% of contaminants. Model WS-303 with its removable tap water container make water refilling easy. With 4 lits a cycle and 16 lits a day will definitely make enough fresh drinking and cooking water for a family of 6 people. With this compact distilling system you are rest assure of pure water glass after glass, day after day, year after year!

Specification:

~ Size: 27.0cm (L) x 27.6cm (W) x 33.0cm (H)
~ Weight: 4 kg
~ Gross Weight: 4.5 kg
~ Packing Dimension: 30.0cm (L) x 31.0cm (W) x 37.0cm (H)
~ Distillate capacity approximate. 4 lits per cycle
~ Will provide up to 16 liters in 24 hours
~ Quanitity contain in a 20ft container: 756 unit

Features:

  1. Recommend for 6 people.
  2. Distills 630c.c. of water at first hour and every succeeding hour
  3. Easy to fill: removable reserve tank that's easy to carry and refill
  4. Makes 4-5 gallons of pure water per day
  5. Distiller shuts-off automatically
  6. Power-rating: 550W, 5A, 120V/240V AC
  7. Main export markets: Eastern Europe, North America, Mid East/Africa, Central/South America , Asia, Western Europe, Australia.
  8. Safety Feature
    (i) Two thermal cut-off for pipe heater to avoid over heating
    (ii) Water breaker. Use micro switch control a relay on pcb shut off
  9. Efficiency and performance
    (i) Make distilled water instantly
    (ii) 630 c.c. distilled water at first hour and every hours


bestdistiller ws-303
portable distilled water maker 4 lits per hour distilled water maker

Water Distiller TC-6

Model: TC-6

Distillation is the only process that boils the water, which means that distillation kills bacteria, viruses and other biological contaminants!! Also during boiling process, inorganic chemical is evaporated while it is at low boiling temperature. This Model TC-6 is a 6 lits per cycle and may be possible of making 12 to 24 lits a day. It is also the only compact system that can desalinate sea water and use to home produce alcohol.

Specification:

~ Diameter : 20 cm Height : 43 cm
~ Weight: 5.2 kg
~ Gross Weight: 6.5 kg
~ Packing Dimension: 44.0cm (L) x 33.0cm (W) x 51.0cm (H)
~ Distillate capacity approximate. 6 lits per cycle
~ May be possible of making 12 to 24 lits a day.
~ 8 blades fan

Features:

  1. Recommend for 8 people.
  2. S/S boiling tank & inner lid
    (outer casing by coating)
  3. Large in Capacity - 6 Liters.
  4. Power-rating: 600W, 5A, 120V/220V AC
  5. Distillation will remove all dissolved matter in water (even sea water), such as virus, bacteria, volatile gas, cyst, organic, inorganic and metallic contaminants.
  6. Able to use for sea water purification.
  7. Good for making homemade wines and distilled water. Enjoy the pure water or other delicious drinking products through the safe DIY process.
  8. This system uses the distillatory way to remove heavy metal, chemical, bacteria, virus, small particulates and convert dirty, polluted water, even sea water to pure drinking water.

TC-6 Distiller cooling coil

Portable Distiller's comparison

Back To Top


Portable Distiller TC-202s

Model: TC-202S

Specification:

~ Diameter : 20 cm Height : 36 cm
~ Weight: 3.5 kg
~ Gross Weight: 4.5 kg
~ Packing Dimension: 28.0cm (L) x 29.0cm (W) x 41.0cm (H)
~ 5 blades fan
~ Distillate capacity approximate. 4 lits per cycle
~ Will provide up to 16 liters in 24 hours
~ International 120V/240V AC - 50Hz - 580 W
~ Detachable Ground Power Cord
~ Quanitity contain in a 20ft container: 900 unit

Water Distiller TC-202s Glass

Stainless Water Distiller 120V/240V - Glass Collection
This distiller features a durable brushed stainless steel outer shell with black top. This is an attractive addition to your kitchen especially if you already have stainless appliances. All WISDOM countertop distillers feature a full stainless steel boiling chamber including the upper dome. This is a convenient, low cost, easy to use 1 gallon water distiller. Makes up to 4 gallons a day. We have been distributing this distiller to doctors, dentists, laboratories, businesses and individuals for over 15 years.

Countertop water distillers offer the convenience of being portable, easy to set up, and less expensive. Most make 1 gallon at a time and shut off automatically when it is finished. You can make subsequent gallons as long as you are there to fill up your water distiller.


Distillation is the only process that collects the pure steam! The steam rises from the water, leaving virtually all other contaminants behind, and then we cool the steam down into pure water! Model: TC-202S is complete build with inner boiling chamber and the outer jacket both made of stainless steel. Manual fill & automatic shut off.

Features:

  1. Recommend for 4 people.
  2. Advanced Design Euro-style Countertop Appliance
  3. Manual fill, no installation required
  4. Automatic shut-off after each cycle
  5. Gaseous Vent & Post Carbon Treatment System
  6. Fan cooled
  7. Stainless steel boiler - 4 liter capacity Stainless steel condenser - not aluminum
  8. Stainless Steel under lid
  9. Enclosed heating element for long life
  10. Mobile, durable, and a space saver.
  11. Automatic temperature thermostat control.
  12. Automatically switches off when the process is finished, zero damage.
  13. No need of filter or cartridges, no pollution.
Portable Type water distiller

Back To Top


Model: TC-500H
Model: TC-501H

Water Distiller TC-500Water Distiller Model TC-500H side view

Water Distiller Model TC500H & TC501H
Water Distiller TC-503

TC-500H Specification:

Size: 27.0x51.5x44.0cm (LxDxH)
Net weight: 12 kg
Distillate capacity: 18 liters in 24 hours
Storing tank: 15L
Heating element: 600 watts, 110V/240V AC
Gross Weight: 14 kg
Packing Dimension: 35.0x43.0x55.5cm (LxDxH)

TC-501H Specification:

Size: 28.0x56.5x49.5cm (LxDxH)
Net weight: 15 kg
Distillate capacity: 26 liters in 24 hours
Storing tank: 24L
Heating element: 900 watts, 110V/240V AC
Gross Weight: 17 kg
Packing Dimension: 37.5x57.0x57.0cm
(LxDxH)

Features:

  1. Connected direct to your faucet in your home.
  2. Fully automatic model. Automatic stop when distilled water storing tank is full and start to run automatically when the distilled water level drops.
  3. Fully stainless steel distillation system.
  4. Using air cool technology.
  5. High grade stainless storing tank .
  6. Distilled water level sensor to control water level inside distilled water tank.
  7. Raw water inlet control valve.
  8. Using electronic circuit board to control the flow of raw water inlet, boiling process in boiling chamber and control of water level in distilled water storing tank.
  9. Residue discharge valve for easy discharge of residue and cleaning of boiling chamber.

Model: TC-500
Model: TC-501
Model: TC-502
Model: TC-503
Water Distiller TC-500
Water Distiller TC-501
Water Distiller TC-502
Water Distiller TC-503

Specification:

Size:
~ 35x27x45cm (LxWxH)
Net weight:
~ 12 kg
Distillate capacity:
~ 18 liters in 24 hours
Storing tank:
~ 15L
Heating element:
~ 700 watts, 110V/240V AC
Gross Weight:
~ 14 kg
Packing Dimension:
~ 46x34.5x53cm (LxWxH)
20ft container contain :
~ 350 unit

Specification:

Size:
~ 46x30x45cm (LxWxH)
Net weight:
~ 15 kg
Distillate capacity:
~ 26 liters in 24 hours
Storing tank:
~ 24L
Heating element:
~ 900 watts, 110V/240V AC
Gross Weight:
~ 17 kg
Packing Dimension:
~ 57x37.5x57cm (LxWxH)
20ft container contain :
~ 202 unit

Specification:

Size:
~ 46x30x53cm (LxWxH)
Net weight:
~ 17.5 kg
Distillate capacity:
~ 35 liters in 24 hours
Storing tank:
~ 32L
Heating element:
~ 1000 watts, 110V/240V AC
Gross Weight:
~ 19 kg
Packing Dimension:
~ 58x41x59.5cm (LxWxH)
20ft container contain :
~ 180 unit

Specification:

Size:
~ 49x33x59cm (LxWxH)
Net weight:
~ 18.5 kg
Distillate capacity:
~ 48 liters in 24 hours
Storing tank:
~ 40L
Heating element:
~ 1200 watts, 110V/240V AC
Gross Weight:
~ 21 kg
Packing Dimension:
~ 58x41x68cm (LxWxH)
20ft container contain :
~ 157 unit

Features:

  1. Connected direct to your faucet in your home.
  2. Fully automatic model. Automatic stop when distilled water storing tank is full and start to run automatically when the distilled water level drops.
  3. Fully stainless steel distillation system.
  4. Using air cool technology.
  5. High grade stainless storing tank .
  6. Distilled water level sensor to control water level inside distilled water tank.
  7. Raw water inlet control valve.
  8. Using electronic circuit board to control the flow of raw water inlet, boiling process in boiling chamber and control of water level in distilled water storing tank.
  9. Residue discharge valve for easy discharge of residue and cleaning of boiling chamber.
  10. OPTIONAL: Demand Pump.
    Extension of distilled water faucet to the area you desired. For example extend from office pantry room to your room or from your house kitchen to your rest room.

    Click here to view how demand pump works.
water still WISDOM Brand
bestdistiller article
Water Distiller TC-501 & TC-6
Fully Automatic Water Distiller Diagram

Back To Top


Model: THC-600
Model: THC-601
Model: THC-602
Hot and Cold Water Distiller
Dispenser Type Distiller
Hot and Cold Fully automatic water distiller

Specification:

Size:
~ 46x30x45cm (LxWxH)
Net weight:
~ 17.5 kg
Distillate capacity:
~ 26 liters in 24 hours
Storing tank:
~
24L (Room Temperature)
~ 4L (Hot Distilled Water)
Heating element:
~ 900 watts, 110V/240V AC
Gross Weight:
~ 20 kg
Packing Dimension:
~
57x37.5x57cm (LxWxH)
20ft container contain :
~ 202 unit

Specification:

Size:
~ 49x33x52cm (LxWxH)
Net weight:
~ 19.0 kg
Distillate capacity:
~ 32 liters in 24 hours
Storing tank:
~
28L (Room Temperature)
~ 6L (Hot Distilled Water)
Heating element:
~ 1000 watts, 110V/240V AC
Gross Weight:
~ 21.5 kg
Packing Dimension:
~
58x41x59.5cm (LxWxH)
20ft container contain :
~ 180 unit

Specification:

Size:
~ 49x33x58cm (LxWxH)
Net weight:
~ 20.0 kg
Distillate capacity:
~ 38 liters in 24 hours
Storing tank:
~
40L (Room Temperature)
~ 6L (Hot Distilled Water)
Heating element:
~ 1200 watts, 110V/240V AC
Gross Weight:
~ 24 kg
Packing Dimension:
~
58x41x68cm (LxWxH)
20ft container contain :
~ 157 unit

Features:

  1. Connected to your raw water faucet.
  2. High grade stainless storing tank and made of fully stainless steel.
  3. Provide hot distilled water as well as distilled water at room temperature. Hot distilled water will maintain at about 85 degree celcius, you can increase the hot distilled water temperature by swiching on the red switch.
  4. Distilled water level sensor to control water level inside distilled water tank and protect pump.
  5. Hot and warm dispenser type water distiller.
  6. Residue discharge valve for easy discharge of residue and cleaning of boiling chamber.
  7. Fully automatic model. Automatic stop when distilled water storing tank is full and start to run automatically when the distilled water level drops.
  8. Using air cool technology.
  9. Using electronic circuit board to control the flow of raw water inlet, boiling process in boiling chamber and control of water level in distilled water storing tank.
  10. OPTIONAL: Demand Pump.
    Extension of distilled water faucet to the area you desired. For example extend from office pantry room to your room or from your house kitchen to your rest room.

    Click here to view how demand pump works.
hot and cold water still distilled water maker
Internal View of Hot and Cold Water Distiller
Fully automatic water distiller model THC-602 and TC-501

Back To Top


100 lits distillation system

Model: TC-506

Specification:

~ Size: 58 cm(L) x 34 cm(W) x 127 cm(H)
~ Distillate capacity: 80 to 100 lits per day
~ Storing tank: 100L (Room Temperature)
~ Net weight: 29 kg
~ Heating element: 900 watts x 2 pieces, 110V/240V AC
~ Gross Weight: 32 kg
~ Packing Dimension:
69.0cm (L) x 42.0cm (W) x 99.0cm (H)
~ 20ft container contain: 96 unit

Features:

  1. Recommend for industry use.
  2. High grade stainless storing tank
  3. Air cool technology.
  4. Fully automatic model. Automatic stop when distilled water storing tank is full and start to run automatically when the distilled water level drops.
  5. Fully stainless steel
  6. Using electronic circuit board to control the flow of raw water inlet, boiling process in boiling chamber and control of water level in distilled water storing tank.
  7. Residue discharge valve
  8. Suitable for dental / industrial / factory.
  9. OPTIONAL: Demand pump. Extension of distilled water faucet to the area you desired. For example extend from office pantry room to your room or from your house kitchen to your rest room.
    Click here to view how demand pump works.
Fully automatic dispenser type water distiller
Model: TC-506 is a larger storing capacity of water distiller for the luxury class consumer and even industrial with the capacity of 80 lit per day. The needs for larger distiller usually involve university, pharmaceutical industry, electronic industry, and autoclave.
TC-506 water distiller is an industrial water distiller for higher demand of best distilled water. TC-506 capable to produce 80 lits distilled water a day. This unit operates quietly with latest designed silent fan.

Back To Top

100 lits distillation system

Model: TC-507

Specification:

~ Distillate capacity: About 130 lits/day
~ Storing tank: 100L (Room Temperature)
~ Size: 66cm (L) x 35cm (W) x 159cm (H)
~ Net Weight: 46.50kg
~ Gross Weight: 53.0kg
~ Heating element: 900 watts x 4 pieces, 220V~240V AC
~ Air Cool Silent Fan: 2 pieces
~ Control Board: 2 pieces
~ Air Cool Condenser: 2 pieces
~ High Grade Stainless Steel Boiling Chamber: 2 pieces
~ Power Plug: 2 pieces
~ Operate in Single Phase : 220V~240V AC

Features:

  1. Recommend for industry use. (Hospital / Industrial / Factory)
  2. Air cool technology. Features an efficient and quiet running silent fan for cooling.
  3. High grade stainless storing tank
  4. Fully automatic model. Automatic stop when distilled water storing tank is full and start to run automatically when the distilled water level drops.
  5. Fully stainless steel distillation system.
  6. Operate in Single Phasse Electric Power 220V~240V.
  7. Using electronic circuit board to control the flow of raw water inlet, boiling process in boiling chamber and control of water level in distilled water storing tank.
  8. Residue discharge valve for easy discharge of residue and cleaning of boiling chamber.
  9. Using Air Cool technology that NO water will be needed and no water will be wasted to cool and condense.
Click here to view how demand pump works.

Large Capacity Distilled Water System for diapers, glove, food, pharmaceutical manufacturing industry

large capacity distillation system
Our distillation system can produce 100 lits/hr, 300 lits/hr, 500lits/hr distilled water.
Contact us for price and product details.

100LPH Water Distillation System Includes:
40kg/h electric steam generator
200LPH two stage RO system
500L pure water storage tank
100LPH multi effect water distiller
200L sterile water storage tank



300LPH Water Distillation System Includes:
65kg/h electric steam generator
500LPH two stage RO system
1000L pure water storage tank
300LPH multi effect water distiller
500L sterile water storage tank



500LPH Water Distillation System Includes:
100kg/h electric steam generator
1000LPH two stage RO system
1500L pure water storage tank
500LPH multi effect water distiller
1000L sterile water storage tank



Model: WDZ-5
Model: WDZ-20
WISDOM brandWater Distiller 5 lits per hour WDZ-5
water cool distillation system WDZ-20

Specification:

Size: ~Diameter: 20cm ; Height: 70cm
Distillate capacity: ~ 5 lits per hour
Maximum Usage: 2 hours/day
Storing tank: ~ Optional
Heating element: ~ 5 kW
Voltage: ~ 240V/50Hz
Electricity: ~ Single Phase
Gross Weight: ~ 9 kg
Packing Dimension: ~ 35x35x78cm (LxWxH)

Specification:

Distillate capacity: ~ 20 lits per hour
Maximum Usage: 10 hours/day
Storing tank: ~ Optional
Heating element: ~ 15 kW
Voltage: ~ 380V or 415V
Electricity: ~ Three Phase
Gross Weight: ~ 15 kg
Packing Dimension: ~ 54x37x79cm (LxWxH)

Features:

  1. Recommend for laboratory and industry used.
  2. Using water cool technology
  3. Fully Stainless Steel.
  4. Easy installation (DIY). No plumbing needed.
  5. Two indicating light showing distillation process status.
  6. When water level inside boiling chamber lower than safety level, this machine will automatically shut off.
  7. Distilled water storing tank is optional item.
  8. Special design to produce distilled water in short time. The first drop of distilled water will flow out after the machine operate for just 10 minutes.
  9. Demineralizer is recommended to used with this model to protect and extend the life of the boiling chamber and heating elements.

Back To Top



Extended Faucet for Fully Automatic Water Distiller

water distiller
By installing this extended faucet and extend to your room, you will discover it is very convenient.

Complete set of extended faucet includes:

  1. Faucet (attach to distilled water tank)
  2. Demand pump with pressure switch and AC~DC adaptor
  3. Faucet (final destination faucet)
best distiller brand WISDOM
WISDOM BRAND Distilled water faucet
distilled water extended faucet for fully automatic model

1. This is a distilled water faucet specially design for extension. Distilled water is flowing from tank to demand pump through ball valve.

2. Distilled water flowing into demand pump then flow to pressure switch. 3. From pressure switch outlet, you can connect a tube with the length of your desire distance, for example to your room, and finally connect to a faucet (final destination faucet).



You may select your preferable final faucet as below
distilled water faucet
water dsitiller accessories
faucet
Final Faucet 01
Final Faucet 02
Final Faucet 03

Back to top


water distiller parts distilled water maker spare parts


Wisdom Trillion Enterprise is the expert in water distiller and we are in this line for more than 15 years! We are very concern in after sales service and you have no worry on the water distiller's parts.

With our technical support team, we will advice you on trouble shooting and do & don't for water distiller to prolong the life span of your water distiller.

Back to top

Wisdom Trillion Enterprise Contact +6012-4873133
